Scanning with AutoScan-DS-MIX to Upper 6-6 Implant Based Bridge

Case information

  • Tooth Position: # 12、 # 15 、 # 22、 # 25
  • Implant System: ICX
  • Restoration type: Implant-based bridge
  • Material: Titanium
  • Superstructure type: #16-26 Resin crowns
  • SHADE: #16-26 A2
  • Case source: Shenzhen Jiahong Dental Medical Co., Ltd; Shenzhen Wotofo Technology Co.,Ltd
  • Milling for Upper 6-6 Implant Based Bridge

Workflow

1.1 Scan – Create an order

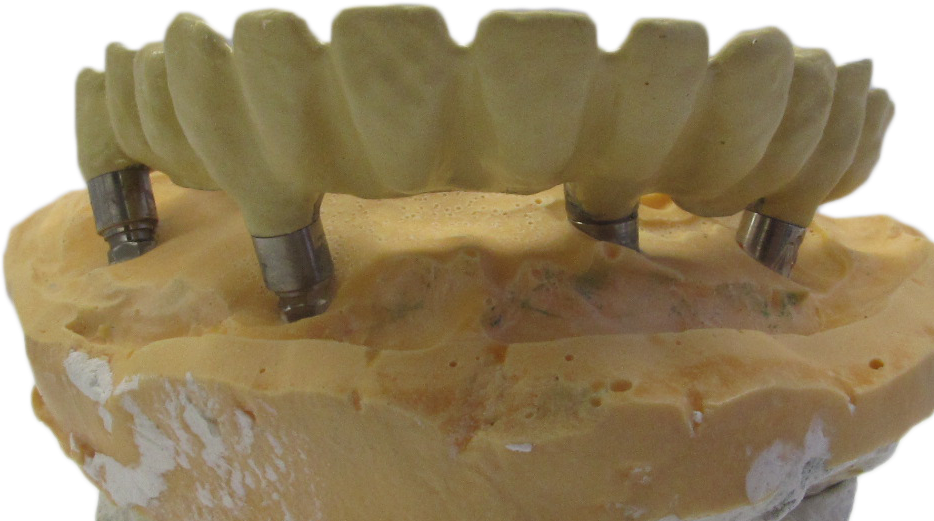

Create order of reduced wax-up bridge.

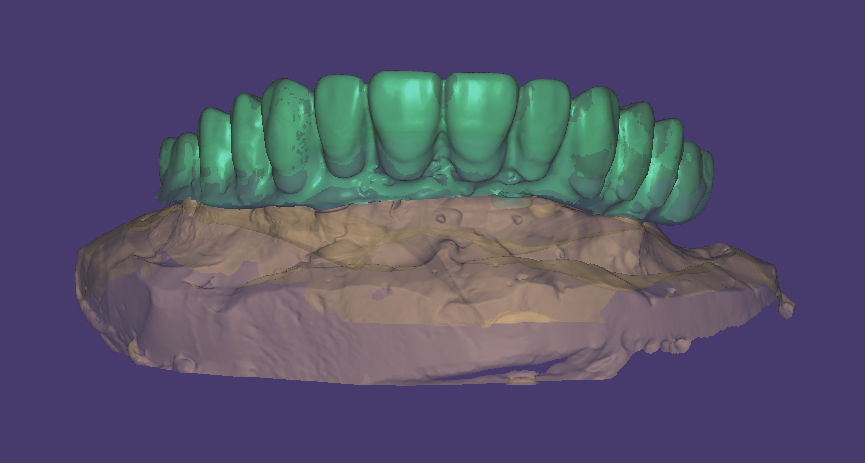

1.1 Scan – Scan with AutoScan-DS-MIX

Thanks to AutoScan-DS-MIX’s exceptional scan performance, all the details are perfectly kept with high accuracy.

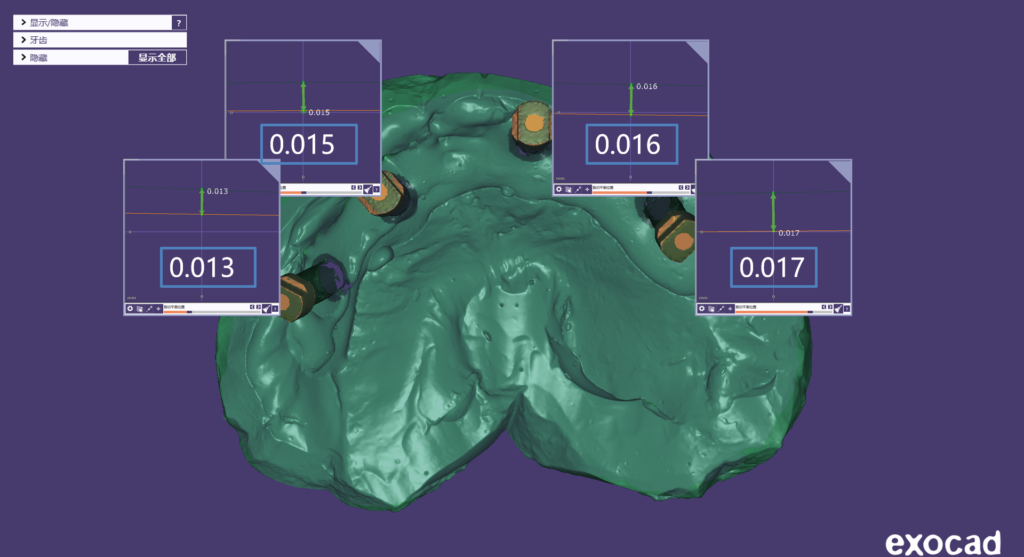

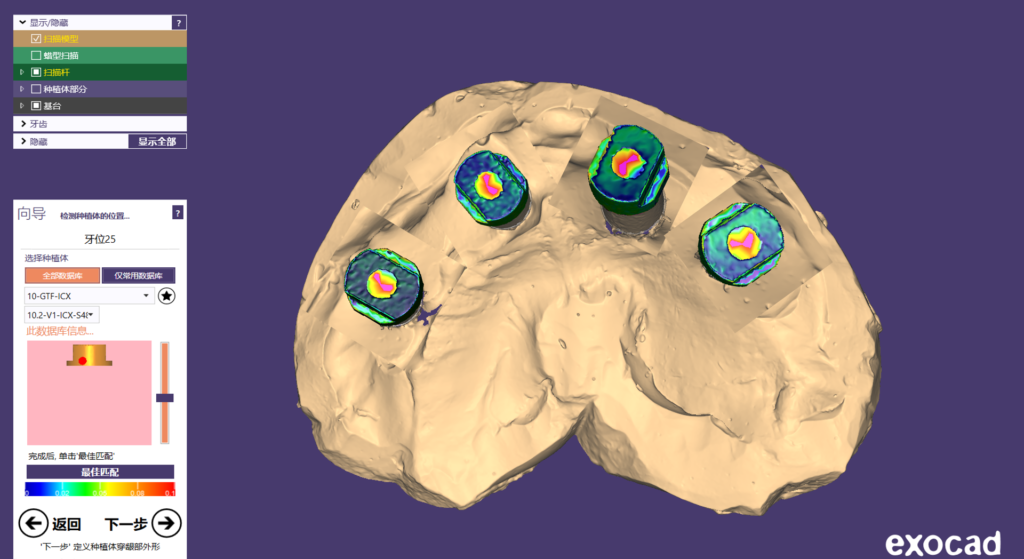

1.2 Design – Matching in exocad

  • Matching error is less than 0.02
  •  Based on the color bar, the matching error is less than 0.02

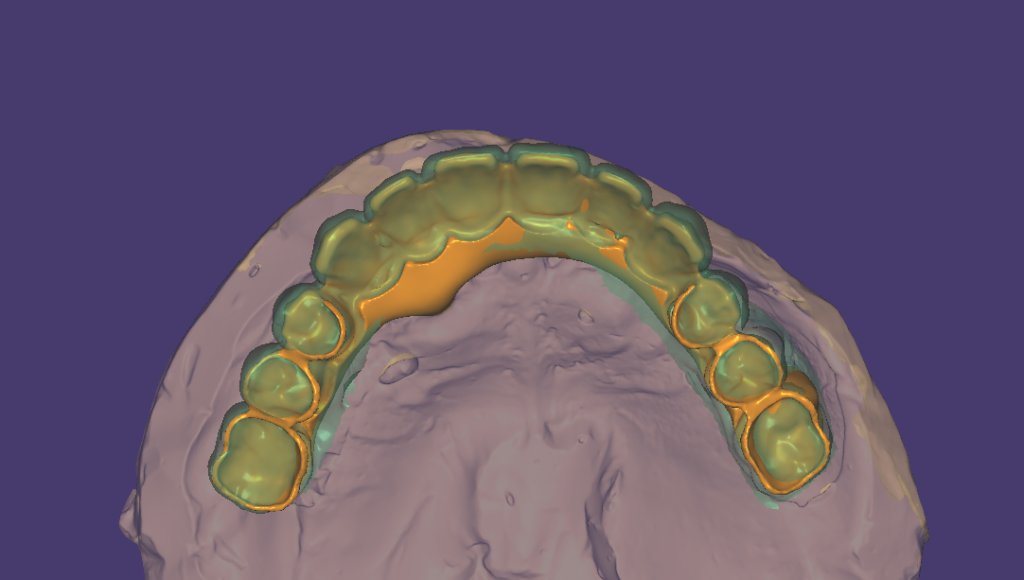

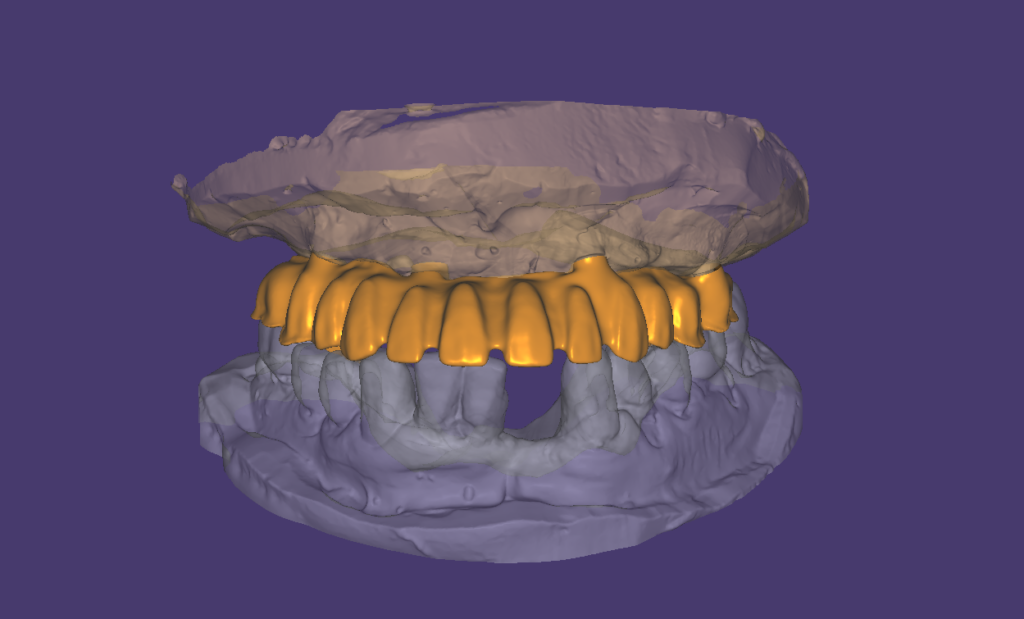

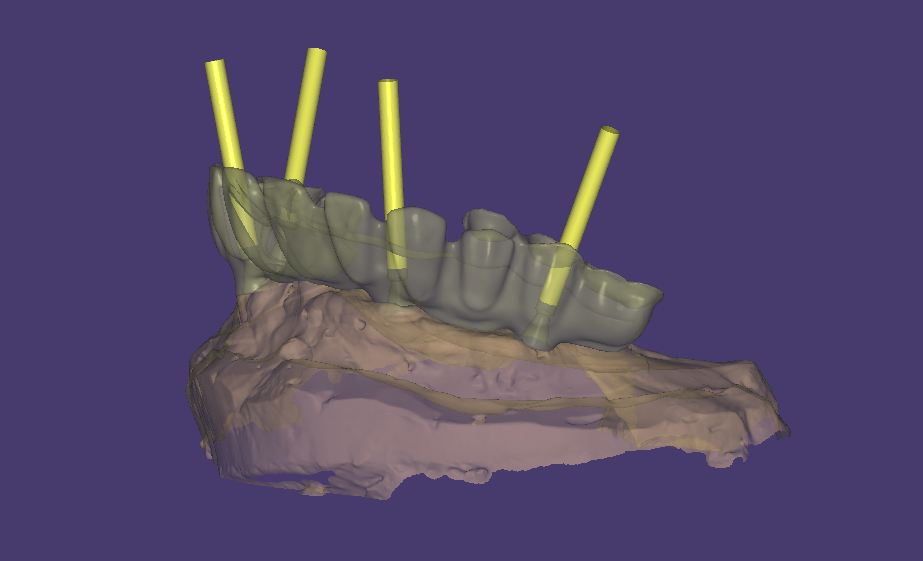

1.2 Design – exocad Design

Design the bridge in exocad.

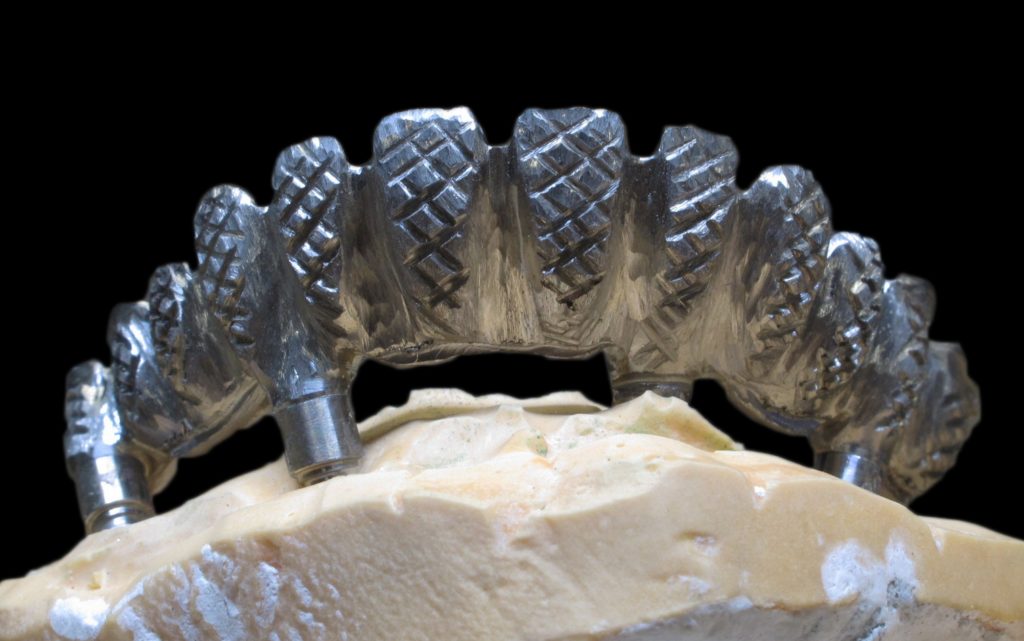

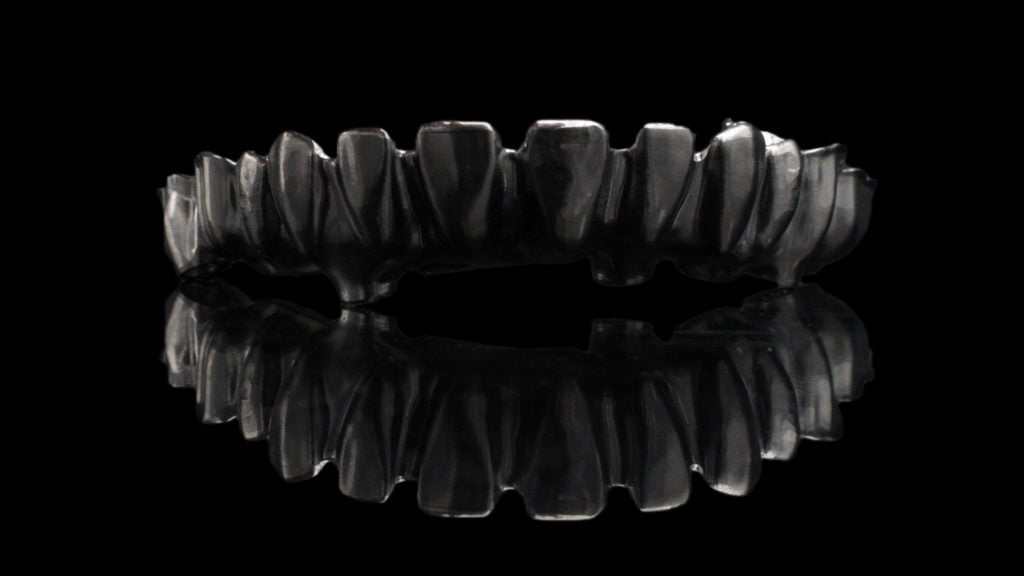

1.3 Milling

  • Milling for Upper 6-6 Implant Based Bridge

CNC machine: Willemin 308B

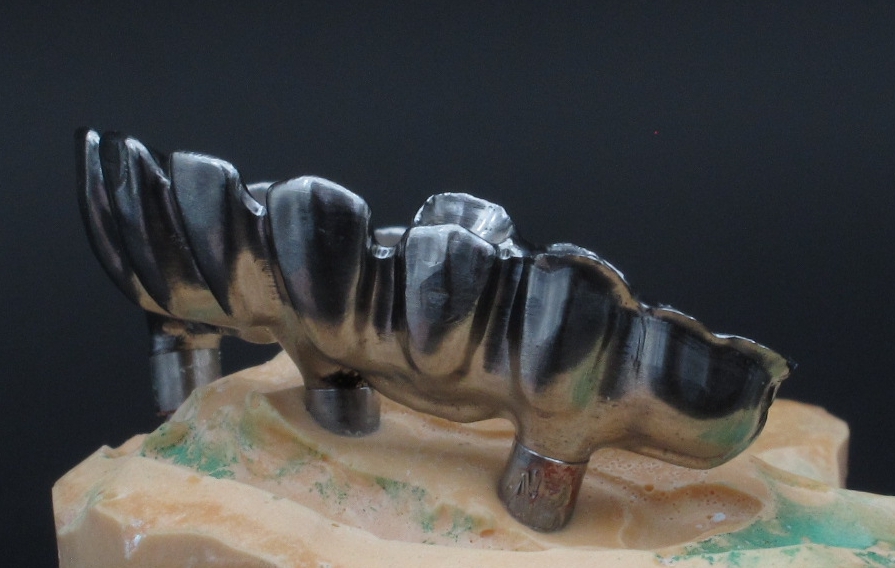

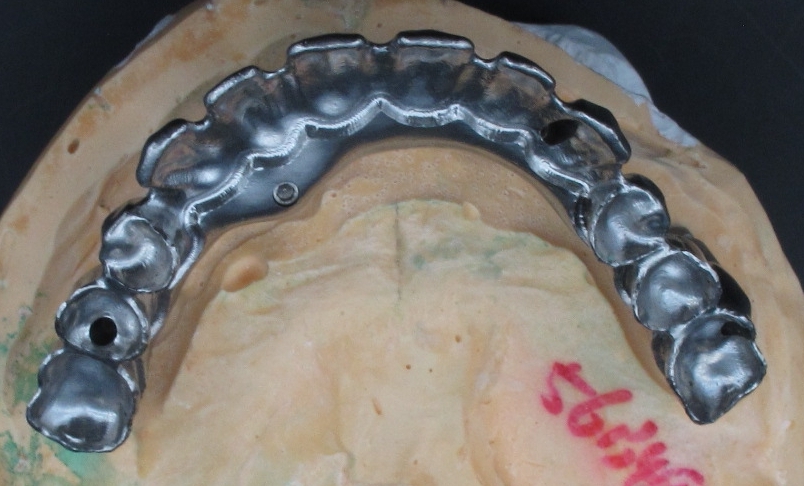

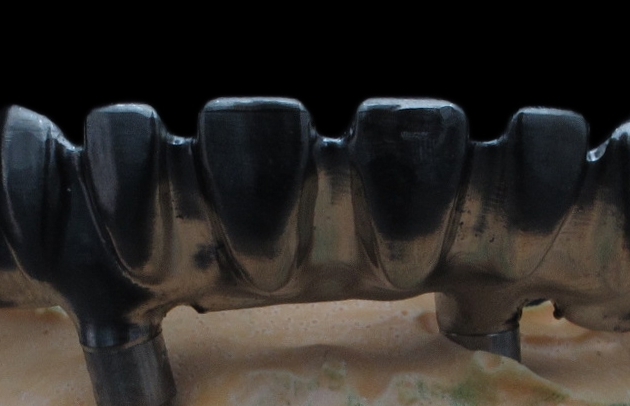

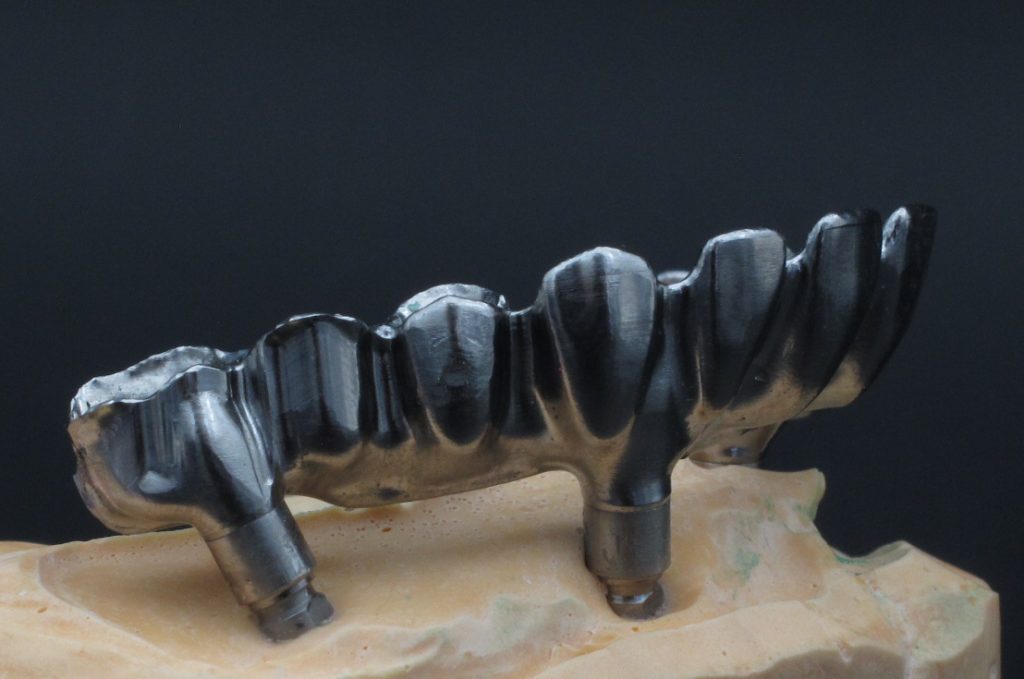

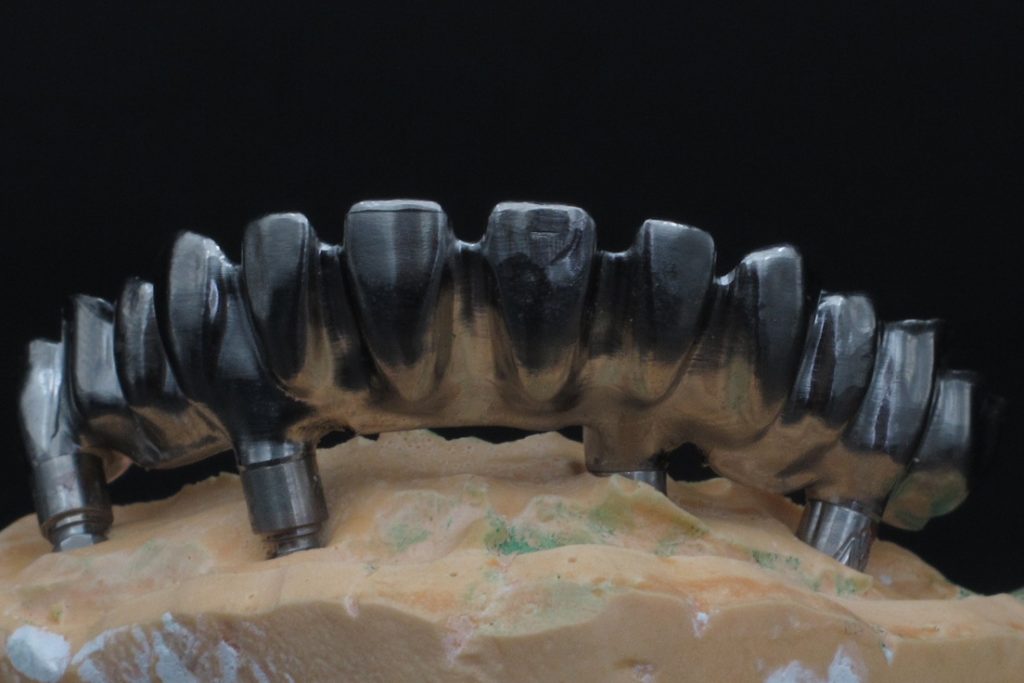

1.4 Complete the metal bridge

High fitness between bridge and implants, even just lock one screw.

1.5 Post-processing

  • Modify
  • Opaque
  • Crown build-up
  • Gingiva bulid-up

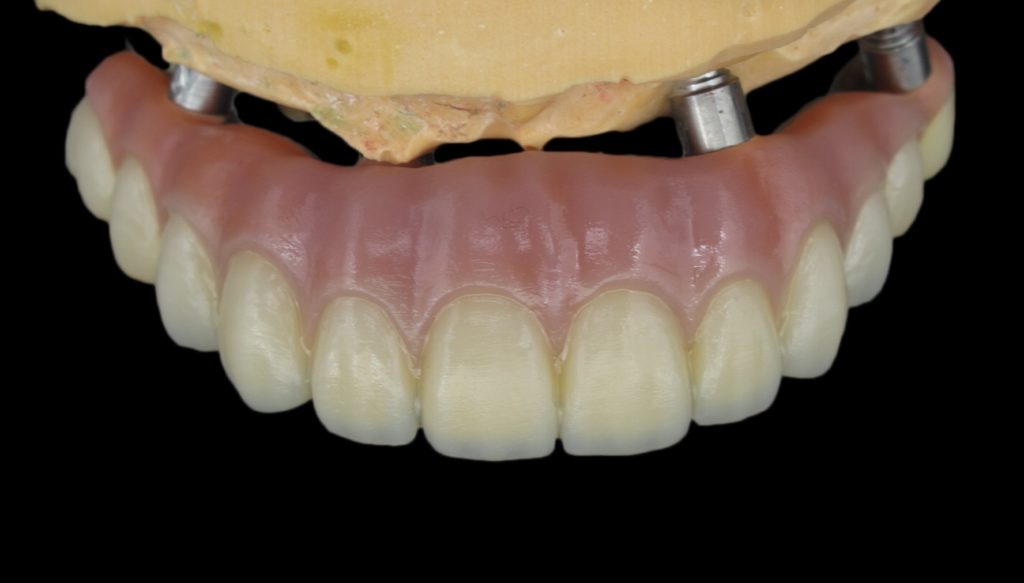

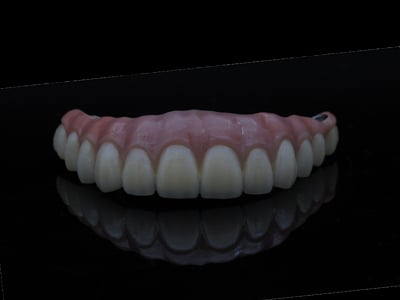

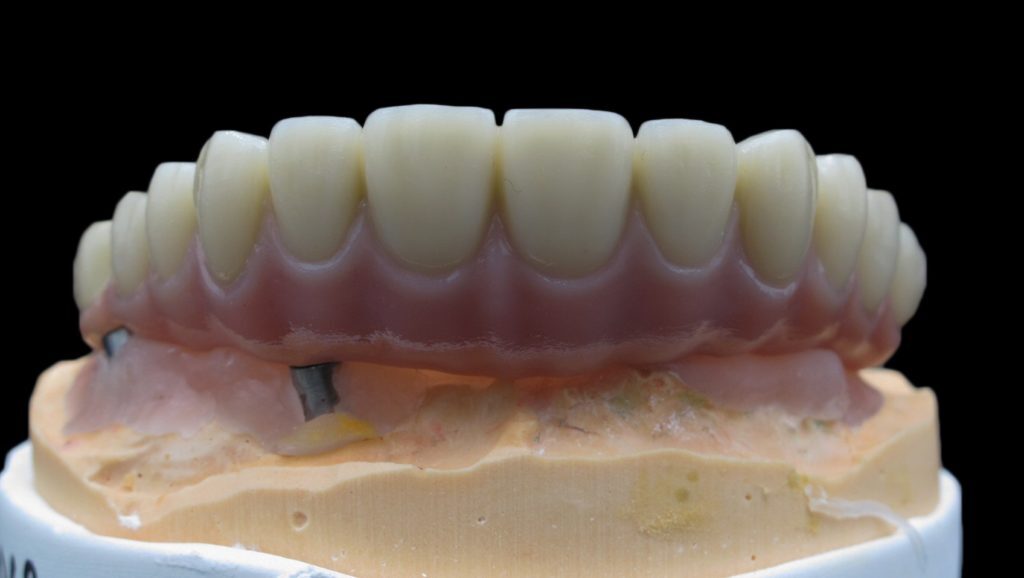

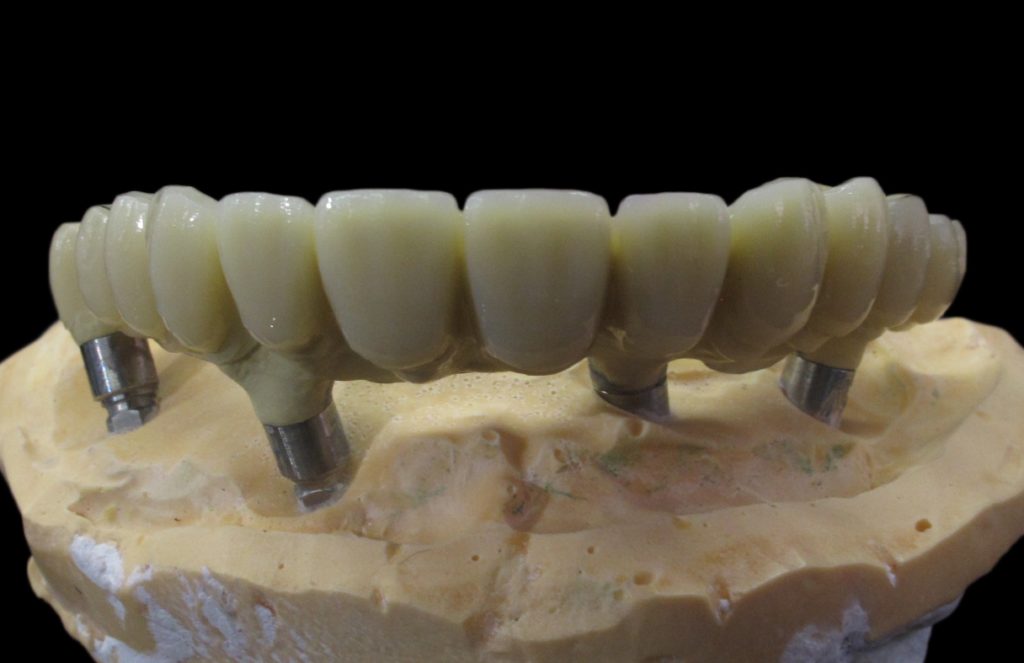

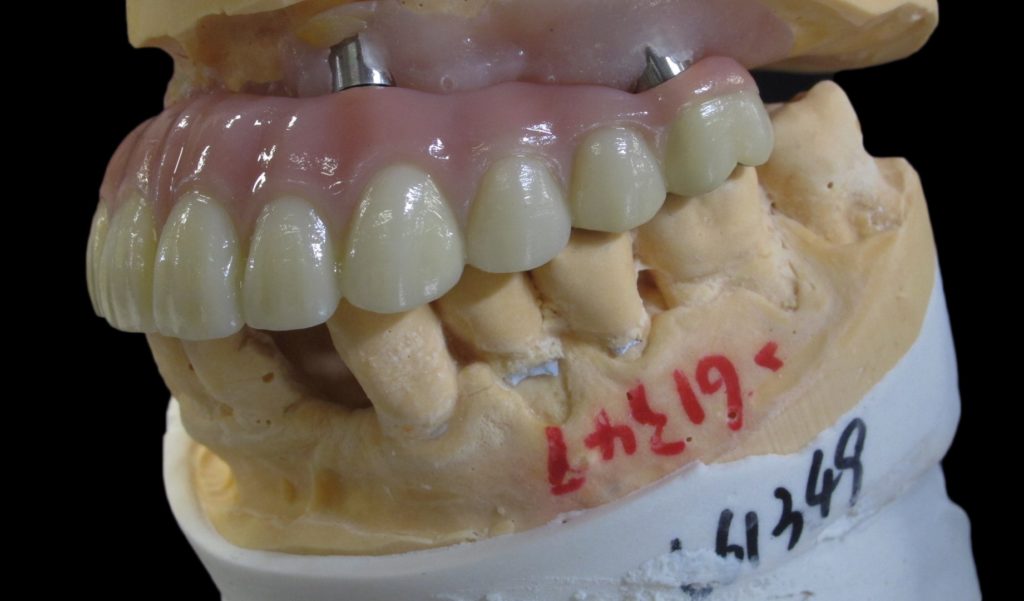

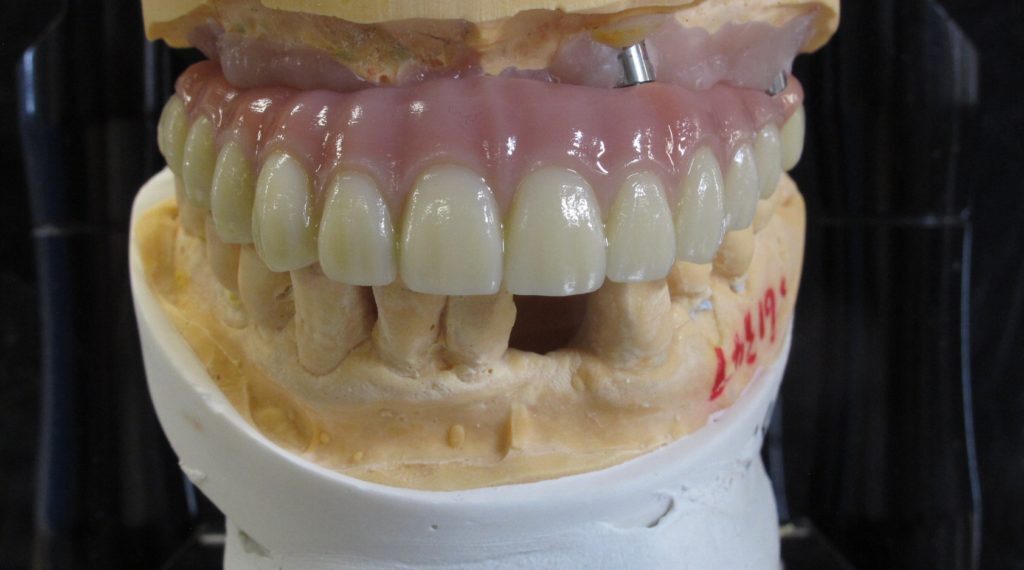

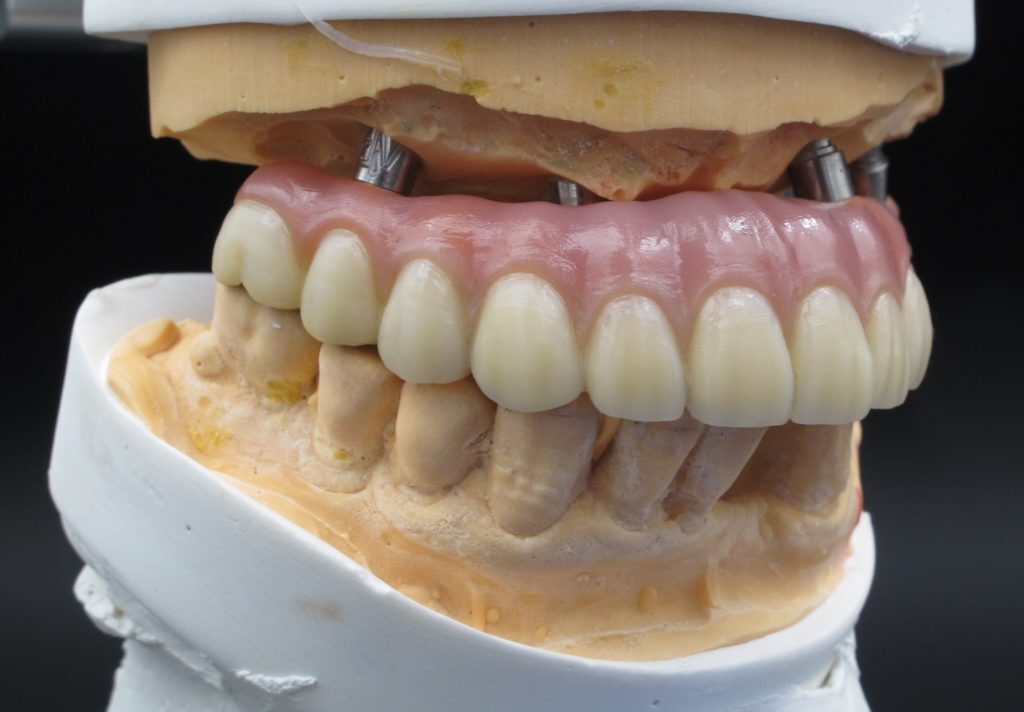

2. Finish

  • Upper 6-6 Implant Based Bridge thanks to 3D scanning

The AutoScan-DS-MIX high-end dental lab 3D scanner developed by SHINING 3D convinces users with its open design and modular structure featuring fine details, high accuracy as well as high efficiency fulfilling users’ demands of a wide range of applications including but not limited to crowns & bridges,abutments, bars, etc.
